Understanding Vehicle Aerodynamics: Beyond the Drag Coefficient

In the early days of automotive design, “aerodynamics” was often treated as an afterthought or a stylistic choice to make a car look “fast.” Today, it is a critical pillar of engineering that dictates everything from the fuel efficiency of a budget hatchback to the lap times of a Formula 1 car. As the world shifts toward Electric Vehicles (EVs), where every watt of energy counts, understanding how air moves over, under, and through a vehicle has never been more important.

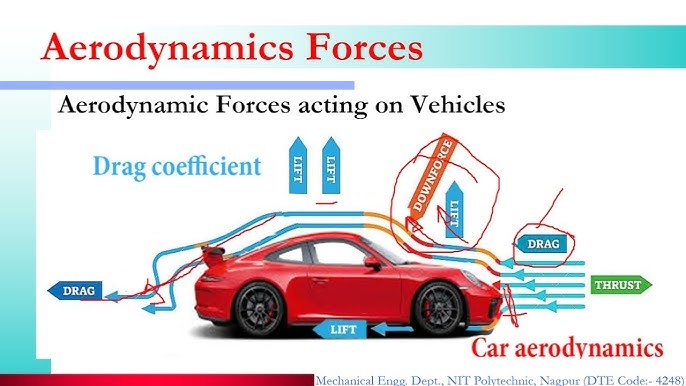

1. The Science of the “CdxA” Formula

While most marketing brochures brag about a car’s Drag Coefficient ($C_d$), that number only tells half the story. The total force resisting a car is a product of its $C_d$ and its Frontal Area ($A$).

• Drag Coefficient ($C_d$): This is a measure of how “slippery” the shape is. A brick has a $C_d$ of roughly 1.0, while a teardrop (the most aerodynamic shape in nature) is about 0.04. Most modern cars sit between 0.22 and 0.30.
• Frontal Area ($A$): This is the total surface area of the front of the car. An SUV might have a sleek $C_d$, but its massive frontal area means it still has to push a huge “wall” of air, hurting efficiency.

2. Active Aerodynamics: The Shape-Shifters

In the past, a car’s shape was fixed. Today, cars are “active.” To balance the need for low drag (for fuel economy) and high cooling (for the engine), manufacturers use:

• Active Grille Shutters: At highway speeds, these slats close to smooth out the airflow over the nose. When the engine gets hot, they open to allow cooling air in.
• Deployable Spoilers: These remain hidden to keep the car sleek at low speeds but extend at 60+ mph to provide stability and prevent the rear end from lifting.
• Air Curtains: Small vents in the front bumper that direct air around the rotating front wheels, reducing the massive turbulence usually created in the wheel wells.

3. The “Ground Effect” and Underbody Aero

The air under the car is just as important as the air over it. A “bluff” or messy underbody creates a pocket of low-pressure air that acts like a parachute, dragging the car backward.

• Flat Underbody Panels: Premium cars now use plastic or carbon fiber trays to make the bottom of the car as smooth as the top.
• Rear Diffusers: By gradually expanding the space at the back of the car, a diffuser helps “pull” air out from under the vehicle, creating a vacuum that sucks the car toward the road—this is known as the Ground Effect.

4. Why Aerodynamics is Vital for EVs

For an internal combustion engine, air resistance is an efficiency problem. For an EV, it’s a range problem. At 70 mph, over 50% of an EV’s energy is spent simply overcoming air resistance. This is why many EVs (like the Tesla Model S or Lucid Air) have unique “flat” wheel designs and flush door handles. Even a small “excrescence” (a protruding part) like a side mirror can reduce an EV’s range by 2–5 miles.
