Modern Turbocharging: Twin-Scroll, Biturbo, and the Rise of Electric Turbos

For decades, the turbocharger was a symbol of raw, unrefined power—reserved for “widow-maker” sports cars and heavy-duty diesel trucks. However, the modern automotive landscape has changed. Driven by strict emissions regulations and the demand for fuel efficiency, manufacturers have turned to “downsizing.” A 2.0L turbocharged four-cylinder engine can now produce the same power as a 4.0L V8, but with significantly less weight and fuel consumption.

To achieve this, engineers have evolved the simple turbo into a family of complex technologies designed to eliminate one specific enemy: Turbo Lag.

1. The Physics of the “Free Lunch”

At its core, a turbocharger is a centrifugal compressor powered by a turbine. The turbine is spun by the engine’s exhaust gases—energy that would otherwise be wasted. This “free energy” spins a shaft connected to a compressor wheel, which forces more air into the engine. More air means more fuel can be burned, resulting in more power.

Turbo Lag occurs because the engine needs to build up enough exhaust pressure to spin the turbine. Until that “spool” happens, the car feels sluggish. Modern technology is designed to make that transition invisible.

2. Twin-Scroll Turbochargers: Solving Interference

In a standard four-cylinder engine, the exhaust pulses from different cylinders can interfere with each other. When Cylinder 1 is exhausting, the pressure wave might collide with the exhaust of Cylinder 3, causing “turbulence” that slows down the turbo’s turbine.

The Solution: A Twin-Scroll turbo has two separate exhaust gas inlets (scrolls) and two nozzles.

• It pairs cylinders that fire at different times (e.g., Cylinders 1 & 4 in one scroll, 2 & 3 in the other).
• This keeps the exhaust pulses separate, allowing them to hit the turbine wheel with more “punch.”
• Result: Quicker spool-up at low RPM and better efficiency throughout the power band.

3. Parallel vs. Sequential (Biturbo) Setups

When an engine has two turbochargers, it is often called a “Biturbo” or “Twin-Turbo” setup. However, how they are arranged changes the driving character completely.

Parallel Twin-Turbos

Common in V6 and V8 engines, this setup uses two identical, small turbos. Each turbo is responsible for one “bank” of cylinders. Because two small turbos are lighter than one giant one, they spin up faster, providing a smooth, linear power delivery that mimics a larger, non-turbocharged engine.

Sequential (Biturbo) Turbos

This setup uses one small turbo and one large turbo.

• Phase 1: At low speeds, the small turbo does all the work. Because it is small, it spins up almost instantly.
• Phase 2: As you accelerate, a “bypass valve” opens, and the larger turbo begins to take over.
• Phase 3: At high RPM, the large turbo provides the massive boost needed for top-end speed.
• Result: No lag at the bottom, and endless power at the top.

4. The Game Changer: Electric Turbochargers (e-Turbos)

The final frontier in eliminating lag is the Electric Turbocharger. Traditional turbos are slaves to exhaust gas; if you aren’t revving the engine, you have no boost.

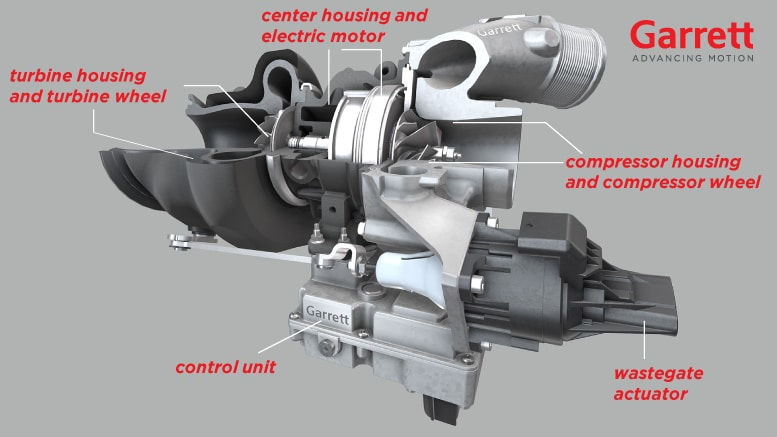

How it works: An electric motor is integrated directly onto the turbocharger shaft between the turbine and the compressor.

1. When you step on the gas, the electric motor spins the compressor to 100,000+ RPM in a fraction of a second—long before the exhaust gases even reach the turbine.
2. Once the exhaust pressure is high enough, the electric motor turns off (or even acts as a generator to charge the battery).
3. Result: Instant torque, regardless of engine speed. This technology, pioneered in Formula 1, is now appearing in high-end Mercedes-AMG and Audi vehicles.

5. Maintenance: Protecting the “Spinning Heat”

A turbocharger can spin at over 200,000 RPM and reach temperatures of 1,000°C. This makes maintenance non-negotiable.

• Oil is Life: The turbo’s bearings rely on a thin film of oil. Dirty oil or low oil pressure will destroy a turbo in seconds.
• The “Cool Down” Rule: After a hard drive, never turn the engine off immediately. Let it idle for 60 seconds. If you stop the engine, the oil stops flowing, but the turbo is still glowing red. The sitting oil will “cook” (coke) inside the bearings, eventually causing failure.
